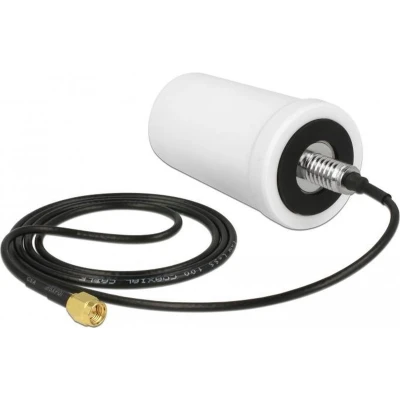

Description This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa . Specification• Connector: 1 x SMA plug• Frequency range: 698 - 960 MHz 1710 - 2170 MHz 2300 - 2700 MHz• GSM, UMTS, LTE, Bluetooth, ISM, NB-IoT, LoRa, Z-Wave, WLAN, ZigBee, DECT, TETRA• Antenna gain: 698 - 960 MHz: 1.7 dBi 1710 - 2170 MHz: 1.7 dBi 2300 - 2700 MHz: 2.0 dBi• VSWR: 698 - 960 MHz: 6.0 1710 - 2170 MHz: 2.5 2300 - 2700 MHz: 2.5• Operating temperature: -40 °C ~ 85 °C• Housing material: polycarbonate• Protection class: IP67• Colour: white• Cable: coaxial• Cable type: ULA100• Cable colour: black• Cable diameter: ca. 2.8 mm• Cable attenuation: 0.98dB @ 1500 MHz per meter• Smallest bending radius: 14 mm• Cable length incl. connectors: ca. 1 m• Dimensions (LxD): ca. 77 x 45 mm System requirements • Device with a free SMA jack Package content • Antenna

Bol Partner

DeLOCK 12545. Antenne versterkingsniveau (max): 2 dBi, Frequentieband: 0.698 - 0.960, 1.710 - 2.170, 2.300 - 2.700 GHz, Impedantie: 50 Ohm. Soort antenne: Omnidirectionele antenne, Aansluiting antenne: SMA, Geslacht connector: Mannelijk. Breedte: 45 mm, Diepte: 45 mm, Hoogte: 77 mm. Type verpakking: Doos
