RJ45 kabelconnector Delock

Onlinekabelshop.nl

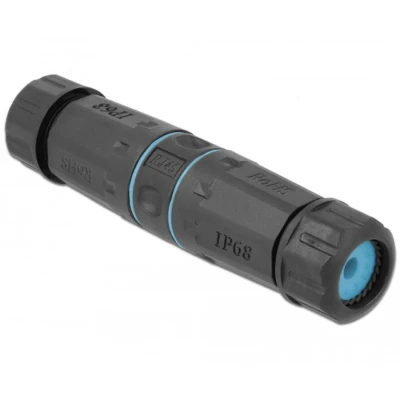

Description This cable connector by Delock can be used to connect or extend two RJ45 network cables and is ideal for outdoor use e.g. in the garden.Various components for the perfect installationThe cable connector consists of a total of 5 plastic parts (1 x RJ45 coupling, 2 x housing and 2 x screw cap) and 4 rings. The sealing ring at the feed-through hole of the housing seals between cable and housing. It can be opened at the side to allow the cable to be inserted. The two screw threads directly on the RJ45 coupler are each protected by a silicone sealing ring.IP68 dust and waterproofThe coupler offers increased protection against dirt and moisture for the connection of the network cables. Specification• Connectors: 1 x RJ45 jack>1 x RJ45 jack• 1:1 connected• Cat.6A specification• Shielded (STP)• Silicone sealing ring blue• Protection class: IP68• For cable diameter from 5.0 - 7.5 mm• Operating temperature: -40 °C ~ 85 °C• Material: plastic• Colour: black• Dimensions (LxWxH): ca. 122 x 30 x 23 mm Packagecontent • Cable connector

Kabeltje.com

De kabelverbinder bestaat uit in totaal 5 kunststof onderdelen (1 x RJ45 koppeling, 2 x behuizing en 2 x schroefdop) en 4 ringen. De afdichtring bij het doorvoergat van de behuizing sluit af tussen kabel en behuizing. Deze kan aan de zijkant worden geopend om de kabel in te kunnen steken. De twee schroefdraden direct op de RJ45-koppeling worden elk beschermd door een siliconen afdichtring.

Allekabels

Type: Cat 6a Aansluiting 1: RJ45 Jack female Aansluiting 2: RJ45 Jack female Extra: Waterdicht
