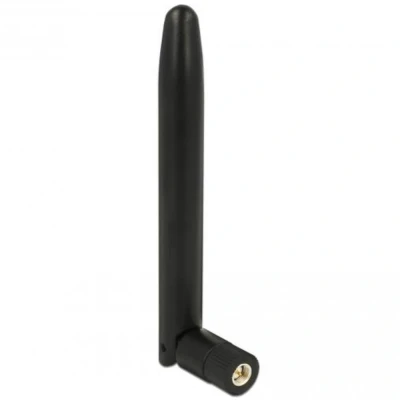

Description This antenna by Delock allows the usage of the 863 - 928 MHz bands indoors. Specification• Connector: 1 x SMA plug• Frequency range: 863 - 928 MHz• LoRa, NB-IoT, ZigBee, Z-Wave (908, 921), ISM, GSM• Antenna gain: 0.5 dBi• Impedance: 50 Ohm• VSWR: 3.5• Polarisation: linear, vertical• Mounting type: screw mounting• Operating temperature: -10 °C ~ 55 °C• Housing material: ABS• Colour: black• Dimensions (LxD): ca. 140 x 13.5 mm System requirements • Device with a free SMA jack Package content • Antenna
Beschrijving
(3)
Description This antenna by Delock allows the usage of the 863 - 928 MHz bands indoors. Specification• Connector: 1 x SMA plug• Frequency range: 863 - 928 MHz• LoRa, NB-IoT, ZigBee, Z-Wave (908, 921), ISM, GSM• Antenna gain: 0.5 dBi• Impedance: 50 Ohm• VSWR: 3.5• Polarisation: linear, vertical• Mounting type: screw mounting• Operating temperature: -10 °C ~ 55 °C• Housing material: ABS• Colour: black• Dimensions (LxD): ca. 140 x 13.5 mm System requirements • Device with a free SMA jack Package content • Antenna
AmazonUitvoering: richtantenne Type antenne: terrestrisch. Toepassing: binnen. Versterking: 0,5 dB Aansluiting: SMA
AllekabelsType: RG-174, Impedantie: 50 Ohm, Aansluiting: SMA stekker, Versterking: 0,5 dBi, Frequentie: 863 ~ 928 MHz
