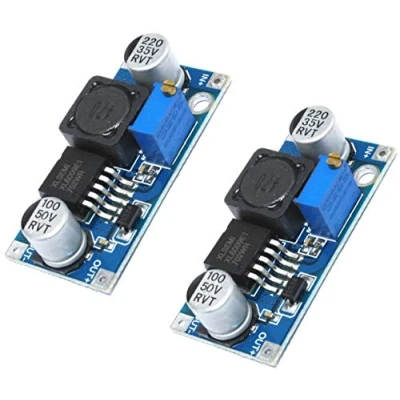

2pcs XL6009 DC Booster Module Power Supply Adjustable Super LM2577 Step up

【XL6009】 XL6009 DC-DC The stepped adjustable power converter module, the step-up circuit board is a non-isolated reinforcement module of good efficiency 【Design compact】 Input: DC 3 V at 30 V, optimum operating voltage range: 5V to 30V; Output: DC 5 V to 35 V voltage is continuously adjustable, the maximum output current is 4 A. Power elevator converter module: can be fixed in the emergency lamp or other electronic devices between the corresponding voltage range, DIY an output of Adjustable mobile power, increase the charger, etc. 【COMPATABILITY】 DSN6009 is a good performance 400KHz 4A coin change step-up pulse module; This XL6009E1 module comes with the 3rd generation high frequency technology as the core chip, the performance is much higher than LM2577. Warning: this is only to increase the output voltage; The input voltage must not exceed 30 V to avoid possible damage. 【Fast delivery】 Fast and high quality delivery of Spain buying in TECNOIOT
