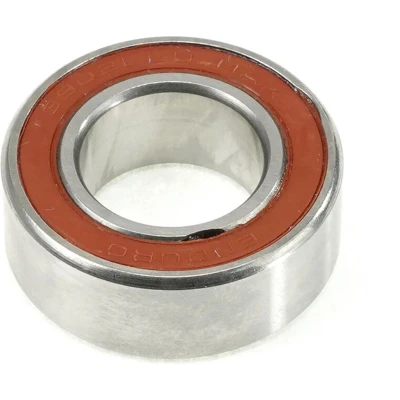

3902 LLU MAX ABEC 3 Double Row (Radial) 15x28x10

3902 LLU MAX - MAX-Design, Double Row, ABEC-3, radial suspension bearing - - 15mm x 28mm x 10mm - Enduro Bearings pioneered MAX type bearings 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX bearings provide 35-40% more load capacity than standard radial bearings by employing with a special design where the maximum number of balls (full-complement) are inserted into the bearing, via a custom ground slot in the races. The race grooves are also deeper on these bearings to provide increased lateral support to counteract the twisting and multi-directional forces associated with mountain bike pivots. This MAX-type, Double-Row, ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area. This bearing has been used by Alutech Cycles as a suspension pivot bearing. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load - 1621lbf / 7.21kN - Weight - 24.81g -

Enduro-lagers, speciaal ontworpen voor verende draaipunten, waren bijna 20 jaar geleden een pionier op het gebied van lagers van het MAX-type voor fietsen om de uitdagingen van mountainbike-draaipunten aan te pakken. Deze lagers hebben 35-40% meer draagvermogen dan standaard radiale lagers. LLU-afdichtingen bieden maximale bescherming tegen de elementen, terwijl de 90% vulling van Alma-gard Extra High Pressure Grease binnenin blijft Afmetingen: 15x28x10
