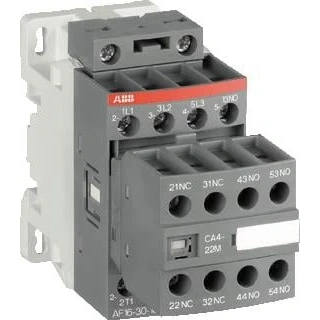

Abb magneetschakelaar 2m 2v ac1 30a 690v hulpcontact 0 spoelspanning 100 250vac 50 60hz 250vdc spoelcode 13 1sbl177501r1300

Bol Partner

Product netto breedte: 45 mm Product netto diepte: 77 mm Product netto hoogte: 86 mm Product netto gewicht: 0.27 kg Technische specificaties Aantal hoofdcontacten NO: 2 Aantal hoofdcontacten NC: 2 Aantal hulpcontacten NO: 0 Aantal hulpcontacten NC: 0 Normen: IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14 Nominaal bedrijfsvoltage: Main Circuit 690 V Toegekende frequentie (f): Main Circuit 50 / 60 Hz Conventionele vrije-lucht thermische stroom (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 A Nominale bedrijfsstroom AC-1 (Ie): (690 V) 40 °C 30(690 V) 60 °C 30 A(690 V) 70 °C 26 Nominale bedrijfsstroom AC-3 (Ie): (415 V) 60 °C 18 A(440 V) 60 °C 18 A(500 V) 60 °C 15 A(690 V) 60 °C 10.5 A(380 / 400 V) 60 °C 18 A(220 / 230 / 240 V) 60 °C 18 A Nominale bedrijfsvermogen AC-3 (Pe): (400 V) 7.5 kW(415 V) 9 kW(440 V) 9 kW(500 V) 9 kW(690 V) 9 kW(380 / 400 V) 7.5 kW(220 / 230 / 240 V) 4 kW Nominale kortstondige grensstroom (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 1 s -empty- A Maximale breekcapaciteit: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A Maximale elektrische schakelfrequentie: (AC-1) 600 omwentelingen per uur Nominaal isolatievoltage (Ui): acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V Nominale impuls grensvoltage (Uimp): 6 kV Maximale mechanische schakelfrequentie: 3600 omwentelingen per uur Nominale stuurstroomkringspanning (Uc): 50 Hz 100 ... 250 V50 Hz / 60 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V Bedieningstijd: Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms Verbindingscapaciteit hoofdcircuit: Flexible with Ferrule 1/2x 0.75 ... 6 mm²Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Rigid 1/2x 1 ... 6 mm² Verbindingscapaciteit controlecircuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 1 ... 2.5 mm² Kabelstriplengte: Control Circuit 10 mmMain Circuit 10 mm Beschermingsgraad: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 Terminaltype: Schroef

Bengshop

ABB MAGNEETSCHAKELAAR 2M-2V AC1-30A-690V-HULPCONTACT 0 SPOELSPANNING 100-250VAC-50-60HZ-100-250VDC SPOELCODE 13 1SBL177501R1300
