Antenne WLAN intern 701 Delock industrie
Beschrijving
Onlinekabelshop.nl

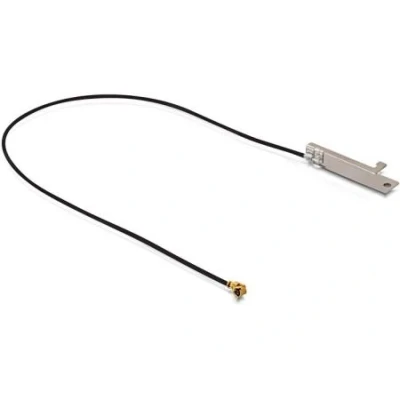

Description This antenna by Delock allows the usage of the 2.4 GHz WLAN bands indoors. Specification• Connector: 1 x I-PEX Inc., MHF® I plug• Frequency: 2400 MHz - 2500 MHz• WLAN 2.4 GHz, Bluetooth, ISM, ZigBee• Antenna gain: 3 dBi• Impedance: 50 Ohm• VSWR: 2.0• Operating temperature: -10 °C ~ 55 °C• Cable type: coaxial• Cable type: 1.13• Cable colour: grey• Cable diameter: ca. 1.13 mm• Cable attenuation: 3.2 dB @ 2400 MHz per meter• Smallest bending radius: 4.5 mm• Dimensions (LxWxH): ca. 23.0 x 6.0 x 5.0 mm• Length incl. connectors (L): ca. 20 cm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna
Beschrijving
(2)
Description This antenna by Delock allows the usage of the 2.4 GHz WLAN bands indoors. Specification• Connector: 1 x I-PEX Inc., MHF® I plug• Frequency: 2400 MHz - 2500 MHz• WLAN 2.4 GHz, Bluetooth, ISM, ZigBee• Antenna gain: 3 dBi• Impedance: 50 Ohm• VSWR: 2.0• Operating temperature: -10 °C ~ 55 °C• Cable type: coaxial• Cable type: 1.13• Cable colour: grey• Cable diameter: ca. 1.13 mm• Cable attenuation: 3.2 dB @ 2400 MHz per meter• Smallest bending radius: 4.5 mm• Dimensions (LxWxH): ca. 23.0 x 6.0 x 5.0 mm• Length incl. connectors (L): ca. 20 cm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna
AllekabelsInterne WLAN-antenne 701 Delock Industrie
Productspecificaties
Prijshistorie
Prijzen voor het laatst bijgewerkt op:
Gerelateerde producten
Naar shop
