Baader Planetarium, Oculairen, (5 mm)

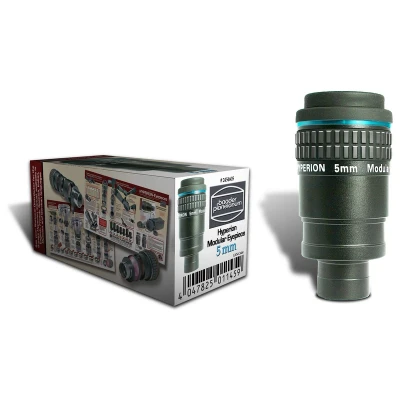

Baader Hyperion 5mm Specificaties van de Baader Hyperion 5mm Brandpuntsafstand: 5 mm Beeldveld: 68 graden (afov) “Eye-relief”: 20 mm Gewicht: 0,4 kg Coating: Baader Phantom coating A variety of ways Connection of cameras and camcorders The Hyperion eyepieces have above (“eye-side”) two system thread. To expose them, either the eyecup or the large thread protection ring must be removed. For one, it’s an M43 thread and continue to a second with SP54 thread; the M43 thread (system thread 1) accessories, E.g. for the normal eyepiece projection is used for connection of T2. A M34 on T2 transition ring (Hyperion M43/T-2) is to switch threads between them (known as afocal projection), the thread SP 54 (system thread 2) is used for connecting digital cameras or camcorders, where the lens can not be removed. Variable focal lengths with fine tuning rings Focal length variability and filter insert A variety of additional Hyperion focal lengths can be obtained by using our 2″ fine tuning extensions rings 14mm and 28mm, or even with our 2″ eyepiece filter set. Thus an eyepiece of 5mm focal length can be converted into one of 2.6mm focal length – without loss of sharpness – above all, because no additional lenses are introduced into the bean, which is unavoidable when using a Barlow lens. Also you can of course astronomical 1¼” eyepiece filters in the 1¼” screwing the eyepiece barrel. Accessory case included with the Hyperion beginner set and complete set. Also available separately. Further focal modification there are tweaking our rings (FTR) with 14 – and 28mm length. The different possible focal lengths when removing the first lens group, and in combination with filters and fine tuning rings can be found in the table above. Stop ring (#2958097): Another “clever” accessories for our Hyperion eyepieces is the stop ring. It can be used, the insertion of the eyepieces set so that each eyepiece gives a sharp image instantly when plugged into a 2″ diagonal mirror. Hyperion eyepieces 6-page user manual Due to the wealth of functions, there is the Baader Hyperion eyepieces own, 6-page instruction manual to explain the variety of connection options of cameras and all the possibilities of the focal length fine tuning. Baader Phantom Coating® Group Baader Phantom Group Coating is a 7-layer broadband coating with extremely low residual reflection. The term “Group” indicates that for each type of glass of the lenses, which come into the Hyperion eyepieces to apply, each effective anti-reflection layer system was expected. All these various anti-reflection coatings on each glass surface were then optimized so that they are most effective where the human eye has its highest sensitivity at night – at about 520 nm – in the green region of the spectrum. The best anti-reflection appears almost colourless: this proves that the anti-reflective coating over the entire visible spectrum is equally good effect. Phantom Group anti-reflection coatings are – depending on the type of glass – almost entirely colourless. In this way it is ensured that the least amount of light for a night-adapted eye is lost without any stray light. If a multi-coated lens (eyepiece or lens) with direct view from the front shows a strong green reflex, then it is not phantom group to a Baader anti-reflective coating! The intensive green reflex is a sign of a little sophisticated coating technique and means that in the spectral range between 500-550 nm the most light is reflected, i.e. is lost.

Multifunctionele groothoekoculairDe Hyperion oculairs leggen de lat hoger op het gebied van kwaliteit en veelzijdigheid:68° gezichtsveld, fysiologisch gezien optimaal voor de ogen De grootste zichthoek die het menselijk oog geheel en ontspannen kan zien bij 68°.Perfecte scherpte over het gehele gezichtsveld door 8 lenzen in 5 groepen.Uitstekende kleurgetrouwheid tot aan de rand van het gezichtsveld.Twee voor de prijs van één Ieder oculair beschikt over twee brandpuntafstanden als de 2"-cilinder wordt gebruikt Zonder de negatieve achromaten is het een 2" overzichtoculair met lage vergroting; beschikt met 1.25" achromaten daarentegen over een nominale vergroting.Zo weinig mogelijke vervorming en tegelijkertijd zeer weinig astigmatisme door het gebruik van glas met een hoge refractie.Kortste brandpuntafstand van alle bij ons bekende groothoekoculairs Speciaal ontworpen voor binoculair gebruik.Comfortabele waarneming
