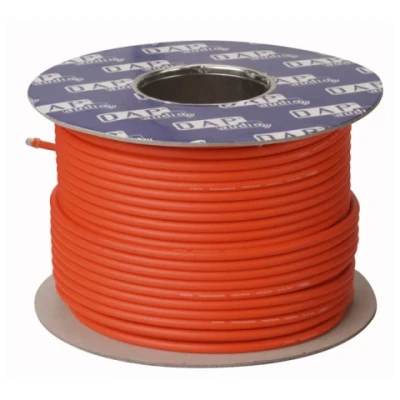

DAP MC 216 Rood microfoon line Kabel 100 meter op Rol

DAP MC-216 Rood microfoon - line Kabel 100 meter op Rol Technical Info  Conductor drains  mm: OFC 28 x 0,10  Conductor insulation: PE red+blue  Conductor insulation  in mm: 1,5  Filler material: paper + cotton yarn  1st shield: OFC twisted 83 x 0,12  2nd shield: -  Outer isolation: PVC black, blue, red, yellow, green  Outer isolation  in mm: 6 Conductor resistance: 80 Ohm/Km Shield resistance: 25 Ohm/Km Capacity Inner conductor: 60 pF/m Cap. Inner conduct. Shield / Inner conduct.: 78 pF/m Working temperature min. / max.: -20~60 C Working Voltage overflash: 30V Nom Impedance: 110 Ohm
