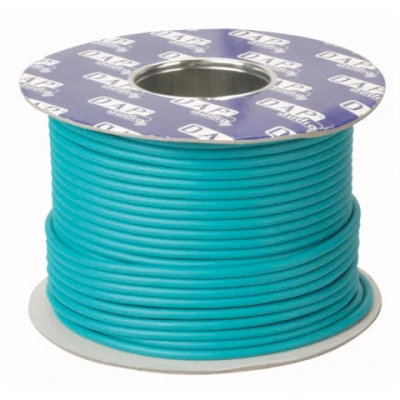

DAP MC 226 Groen Microfoon Kabel dubbele isolatie 100mtr op rol

DAP MC-226 Groen Microfoon Kabel dubbele isolatie 100mtr op rol Technical Info  Conductor drains  mm: OFC 15 x 0,12  Conductor insulation: PE red+white  Conductor insulation  in mm: 1,5  Filler material: -  1st shield: 2 x Conductive plastic  2nd shield: OFC twisted 96 x 0,12  Outer isolation: PVC black, blue, red, yellow, green  Outer isolation  in mm: 6 Conductor resistance: 90 Ohm/Km Shield resistance: 25 Ohm/Km Capacity Inner conductor: 60 pF/m Cap. Inner conduct. Shield / Inner conduct.: 78 pF/m Working temperature min. / max.: -20~60 C Working Voltage overflash: 30V Nom Impedance: 110 Ohm
