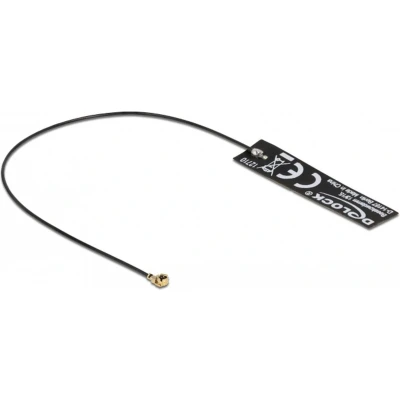

Delock 12710 antenne, GNSS, MHF aansluiting

Description This antenna by Delock receives signals from BEIDOU, GALILEO, GLONASS and GPS satellites simultaneously on GNSS devices. Specification • Connector: 1 x I-PEX Inc., MHF® I compatible plug • Frequency range: 1176 MHz 1227 MHz 1575 MHz 1602 MHz • Antenna gain: 0 - 2 dBi • VSWR: 2.0 • Impedance: 50 Ohm • Polarisation: linear, vertical • Mounting type: self-adhesive • Operating temperature: -40 °C ~ 85 °C • Housing material: FPC • Colour: black • Cable type: coaxial • Cable type: 1.13 • Cable colour: black • Cable diameter: ca. 1.13 mm • Cable attenuation: 3.2 dB @ 2.4 GHz per meter • Smallest bending radius: 4.5 mm • Dimensions (LxWxH): ca. 46.0 x 10.0 x 0.2 mm • Length incl. connectors (L): ca. 25 cm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna

Delock GNSS BEIDOU GALILEO GLONASS GPS L1 L2 L5 Antenne MHF I
