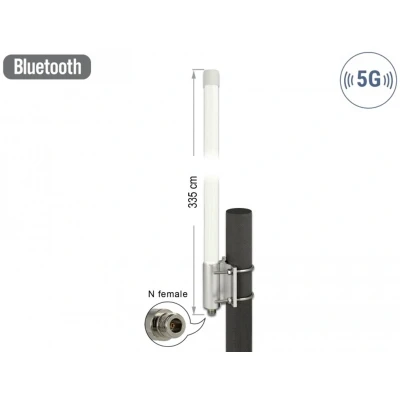

Delock 5G LTE Antenne N Socket 2,14 2,93 dBi 33,5 cm Rigid Wall en

Description This waterproof antenna by Delock allows the usage of different 5G and LTE bands outdoors. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa. 5G mobile radio standard 5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency. Specification • Connector: 1 x N jack waterproof • Frequency range: 617 - 798 MHz 803 - 960 MHz 1452 - 1496 MHz 1710 - 2200 MHz 2300 - 2690 MHz 3300 - 3800 MHz 4200 - 5000 MHz • Antenna gain: -2.14 - 2.93 dBi • Impedance: 50 Ohm • VSWR: 3.0 - 5.0 • Polarisation: linear, vertical • Operating temperature: -40 °C ~ 85 °C • Housing material: GFRP • Length: ca. 335 mm • Diameter: ca. 27 mm • Weight: ca. 284 g System requirements • Device with one free N port Package content • Antenna • Mounting material

Omnidirectionele antenne N-type Wit 2,93 dBi 50 Ohm Mannelijk Wand/paal 100 W DeLOCK 12631. Antenne versterkingsniveau (max): 2,93 dBi, Impedantie: 50 Ohm, H-plane (3 dB straalbreedte): 360°. Soort antenne: Omnidirectionele antenne, Aansluiting antenne: N-type, Geslacht connector: Mannelijk. Vermogensverbruik (max): 100 W. Hoogte: 335 mm, Diameter: 2,7 cm, Gewicht: 284 g. Aantal per verpakking: 1 stuk(s)
