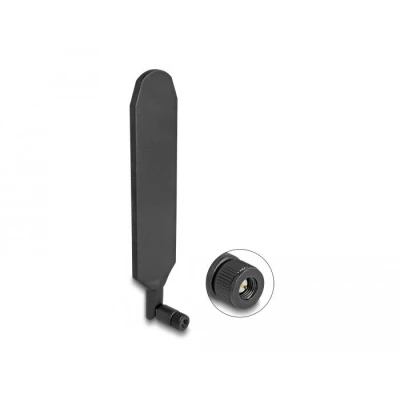

Delock 5G LTE Antenne SMA Stecker 3 dBi omnidirektional drehbar mit Ki

Description This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa. 5G the new mobile radio standard 5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency. Specification • Connector: 1 x SMA plug • GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, LoRa • Frequency range: 700 - 960 MHz 1710 - 2700 MHz 2300 - 2500 MHz 3300 - 4000 MHz • Antenna gain: 0.5 - 3.0 dBi • Impedance: 50 Ohm • VSWR: 2.8:1 max. • Polarisation: linear, vertical • Operating temperature: -40 °C ~ 80 °C • Housing material: ABS • Colour: black • Dimensions (LxWxH): ca. 209 x 42 x 6 mm System requirements • Device with a free SMA connector Package content • Antenna

5G / LTE antenne met SMA stekker en kantelgewricht voor meerdere mobiele en ISM-banden. Geschikt voor 50 ohm radiofrequentiesystemen.
