Delock Adapter aansluitblok 26Pin DB25 Parallelle Poort Connector (DB25, 6.48 cm), Data + Video Adapter, Zwart

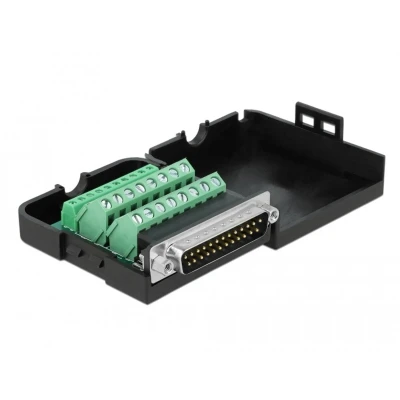

Description This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling. Protection by enclosure The plastic enclosure protects the PCB from dirt and damage. Strain relief The integrated strain relief fixes the cable in the enclosure. Specification • Connectors: 1 x Parallel DB25 male with nuts 1 x 26 pin terminal block • Pin assignment: 1:1 • Pitch 1 - 16 pins: 5.00 mm • Pitch 17 - 26 pins: 3.81 mm • Useable for a cable gauge from 26 to 18 AWG • Operating temperature: -20 °C ~ 105 °C • Dimensions (LxWxH): ca. 64.8 x 56.4 x 25.0 mm System requirements • A free DB25 female Package content • Adapter • 1 x strain relief • 2 x locking screws
