Delock Adapter USB 2.0 Type A to 1 x Serial RS 422/485 male with 6 pin terminal block 5 V 0.5 m
Uitgelicht
|
31,00 |
Naar shop
|
| VERGELIJK ALLE AANBIEDERS (3) | ||
Beschrijving
Onlinekabelshop

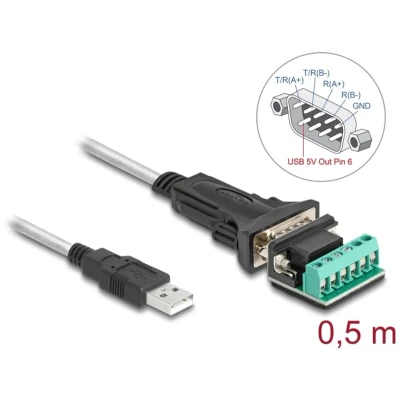

Description This USB 2.0 to serial adapter by Delock provides a standard RS-422 and RS-485 connection for measuring devices, POS systems, printers, modems, IoT devices etc.
Terminal block
The terminal block is suitable for installation in PC housings and for any solderless cable connection with RS-422 or RS-485 interface.
Optionally, external devices can be supplied with voltage of 5 V over the terminal block.
Specification • Connectors:
Adapter:
1 x USB 2.0 Type-A male
1 x serial RS-422/485 D-Sub 9 pin male with screws
Terminal block:
1 x serial RS-422/485 D-Sub 9 pin female with nuts
1 x 6 pin terminal block
• Terminal block: T/R+, T/R-, RXD+, RXD-, GND, VCC
• Chipset: FTDI FT232R
• Data transfer rate up to 921.6 Kbps
• Cable length incl. connectors: ca. 0.5 m
System requirements • Linux Kernel 5.11 or above
• Mac OS 11.6 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC or laptop with a free USB Type-A port
Package content
• USB 2.0 to 1 x serial RS-422/485 adapter
• Terminal block adapter
• User manual
Beschrijving
(2)
Description This USB 2.0 to serial adapter by Delock provides a standard RS-422 and RS-485 connection for measuring devices, POS systems, printers, modems, IoT devices etc. Terminal block The terminal block is suitable for installation in PC housings and for any solderless cable connection with RS-422 or RS-485 interface. Optionally, external devices can be supplied with voltage of 5 V over the terminal block. Specification • Connectors: Adapter: 1 x USB 2.0 Type-A male 1 x serial RS-422/485 D-Sub 9 pin male with screws Terminal block: 1 x serial RS-422/485 D-Sub 9 pin female with nuts 1 x 6 pin terminal block • Terminal block: T/R+, T/R-, RXD+, RXD-, GND, VCC • Chipset: FTDI FT232R • Data transfer rate up to 921.6 Kbps • Cable length incl. connectors: ca. 0.5 m System requirements • Linux Kernel 5.11 or above • Mac OS 11.6 or above • Windows 8.1/8.1-64/10/10-64/11 • Windows Server 2019 • PC or laptop with a free USB Type-A port Package content • USB 2.0 to 1 x serial RS-422/485 adapter • Terminal block adapter • User manual
AllekabelsDeze USB 2.0 seriële adapter van Delock biedt een standaard RS-422- en RS-485-aansluiting voor meetinstrumenten, POS-systemen, printers, modems, IoT-apparaten etc. De terminalblok is geschikt voor montage in pc-behuizingen en voor elke soldeerloze kabelverbinding met RS-422- of RS-485-interface. Voeding: Optioneel kunnen externe apparaten via de terminalblok met 5 V spanning worden gevoed. • Aansluitingen: Adapter: 1 x USB 2.0 Type-A stekker 1 x Seriële RS-422/485 D-Sub 9-pins stekker met schroeven Terminalblok: 1 x Seriële RS-422/485 D-Sub 9-pins connector met moeren 1 x 6-pins terminalblok • Terminalblok: T/R+, T/R-, RXD+, RXD-, GND, VCC • Chipset: FTDI FT232R • Gegevensoverdrachtssnelheid tot 921,6 Kbps • Kabellengte incl. aansluitingen: ca. 0,5 m • Linux Kernel 5.11 of hoger • Mac OS 11.6 of hoger • Windows 8.1/8.1-64/10/10-64/11 • Windows Server 2019 • PC of laptop met een vrije USB Type-A-poort • USB 2.0 naar 1 x Seriële RS-422/485 adapter • Terminalblok adapter • Handleiding Adapters & Converters USB USB 1.1 / USB 2.0
