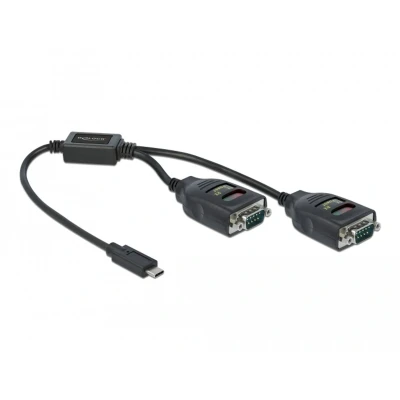

Delock Adapter USB Type C™ to 2 x Serial RS 232 DB9 with 15 kV ESD protection

Description This USB Type-C™ to serial adapter by Delock provides two RS-232 DB9 interfaces for printers, measuring instruments, controllers, IoT devices etc. At each of the RS-232 ports three LEDs indicate the transmission and reception status as well as the USB power. Specification • Connectors: 1 x USB Type-C™ male 2 x serial RS-232 DB9 male • Serial connector with nuts • Chipset: FTDI FT231XS • Data transfer rate up to 460.8 Kbps • FIFO: 512 Byte - RX • FIFO: 512 Byte - TX • Databits: 7, 8 • Stop bits: 1, 2 • Parity: even, odd, none, mark, space • Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND • LED colour: red, orange, green • ±15 kV ESD protection for all serial signals • Operating temperature: -40 °C ~ 85 °C • Cable length without connectors: ca. 35 cm System requirements • Linux Kernel 4.9 or above • Mac OS 10.15 or above • Windows 8.1/8.1-64/10/10-64/11 • PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port Package content • USB Type-C™ to 2 x serial adapter • Driver CD • User manual

Delock Adapter USB Type-C naar 2 x Seriële RS-232 DB9-poorten met 15 kV ESD-bescherming - Seriële adapter - USB-C - RS-232 x 2
