Delock Aluminium Montageclip für Hutschiene 100,0 x 47,8 mm silber

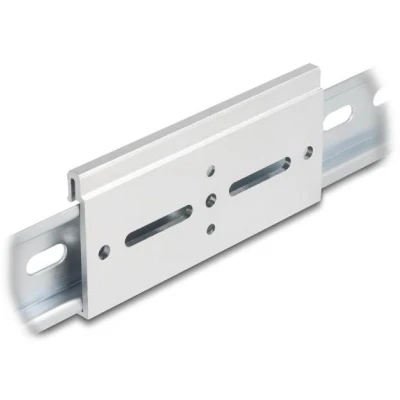

Description This mounting clip by Delock is suitable for the mounting on a 35 mm DIN rail. To be used for different devices The clip can be screwed to different devices. This allows you to mount the devices e.g. in a control cabinet onto a DIN rail. Specification • DIN rail mounting: 35 mm • 5 x mounting holes • 3 x Mounting hole diameter: ca. 4.5 mm • 2 x Mounting hole diameter: ca. 3.2 mm • 2 x elongated hole horizontal: ca. 27.5 x 4.5 mm • Environmental temperature: -20 °C ~ 100 °C • Material: aluminium with spring steel wire • Colour: silver • Dimensions (LxWxH): ca. 100.0 x 47.8 x 7.5 mm Package content • 1 x mounting clip • 4 x screw M3 x 6 mm

Montage type: DIN rail 35 mm Montagegat Ø: 3x 4,5 mm, 2x 3,2 mm Kleur: Zilver
