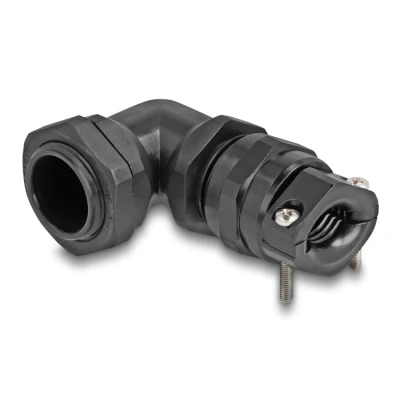

Delock Cable Gland with strain relief and bending protection 90 angled PG16 black

Description This cable gland by Delock allows a watertight seal to the housing for the lead-through of cables and electrical tubes. The angled design is perfectly suited to use the cable gland in installation areas with limited space. Additional protection through strain relief The screw-on strain relief fixes the cable and protects it from excessive bending, e.g. in machinery. The cable remains in their original position even during vibrations and they cannot fall out. IP68 dust and waterproof The cable gland also offers increased protection against dirt and moisture. Multifunctional application The robust design is ideal for use in automation, the robotics industry and machinery. Specification • Thread size: PG16 • Thread length: 10 mm • Spanner width: 27 mm • Protection class: IP68 • Cable diameter: min.: 10 mm max.: 14 mm • Operating temperature: -40 °C ~ 100 °C • Material: plastic • Colour: black RAL9005 Package content • Cable gland

IP-beschermingsklasse: IP68 Materiaal: Kunststof Kabeldiameter: 10 - 14 mm Kabelklem: PG16
