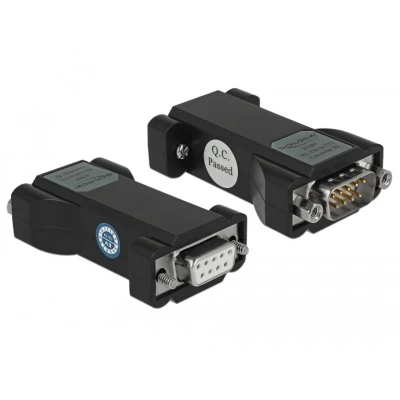

Delock Converter Seriële RS-232 DB9 Naar TTL CMOS 5 V Kabeladapter

Description This RS-232 serial to TTL / CMOS converter by Delock converts RS-232 signals to compatible TTL / CMOS 5 V levels and is suitable for connection to industrial controls, level shifter, microcontrollers etc. The converter can be screwed directly between two DB9 connectors without an additional power supply. Specification • Connectors: 1 x serial RS-232 DB9 female with screws 1 x serial TTL / CMOS DB9 male with nuts• Auto data flow control• Plug & Play• Data transfer: asynchronous, full duplex• Data transfer rate: 300 bps - 115.2 Kbps• ±3 kV ESD protection for all serial signals• Housing material: plastic• Colour: black• Operating temperature: -40 °C ~ 85 °C• Relative humidity: 5 - 95 % (non condensing)• Dimensions (LxWxH): ca. 63 x 34 x 18 mm• Bus Power from RS-232: TXD, RTS or DTR• No external power supply needed System requirements • Device with a free RS-232 port Package content • Converter RS-232 to TTL / CMOS

Description This RS-232 serial to TTL / CMOS converter by Delock converts RS-232 signals to compatible TTL / CMOS 5 V levels and is suitable for connection to industrial controls, level shifter, microcontrollers etc. The converter can be screwed directly between two DB9 connectors without an additional power supply. Specification • Connectors: 1 x serial RS-232 DB9 female with screws 1 x serial TTL / CMOS DB9 male with nuts • Auto data flow control • Plug & Play • Data transfer: asynchronous, full duplex • Data transfer rate: 300 bps - 115.2 Kbps • ±3 kV ESD protection for all serial signals • Housing material: plastic • Colour: black • Operating temperature: -40 °C ~ 85 °C • Relative humidity: 5 - 95 % (non condensing) • Dimensions (LxWxH): ca. 63 x 34 x 18 mm • Bus Power from RS-232: TXD, RTS or DTR • No external power supply needed System requirements • Device with a free RS-232 port Package content • Converter RS-232 to TTL / CMOS
