Delock D Typ RJ45 Einbaubuchse / Kupplung Cat.6A STP mit Schutzkappe I

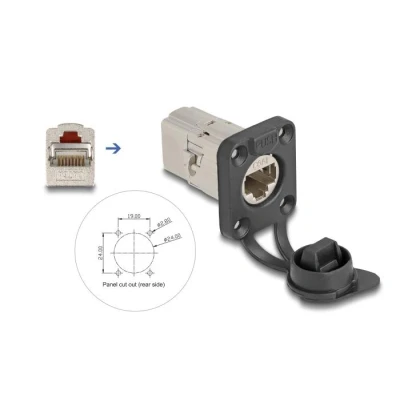

Description This RJ45 built-in conenctor with D-shaped metal flange by Delock can be used for panel mounting and for installation in a housing. IP66 dust and waterproof The module offers increased protection against dirt and moisture when the protective cap is closed. Special features • Countersink for cylinder screws Specification • Connectors: 1 x RJ45 jack 1 x RJ45 jack • Cat.6A specification • For D-type ports with 24 x 19 mm • Panel cut-out (diameter): ca. 24 mm • Four mounting holes for screw fastening • Shielded (STP) • With protection cap • Protection class: IP66 • Operating temperature: -10 °C ~ 60 °C • Material: metal / plastic • Colour: silver • Dimensions (LxWxH): ca. 37.6 x 32.6 x 27.6 mm Package content • D-Type module • 4 x screw • 4 x washer

Extern: RJ45 female Intern: RJ45 female Materiaal: Metaal, kunststof
