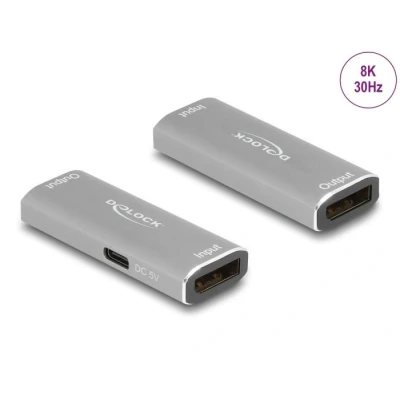

Delock DisplayPort 1.4 Repeater 8K 30 Hz 20 m HQ products

Description This DisplayPort repeater by Delock can be used for signal enhancement of a DisplayPort connection up to 20 m. An up to 10 m long cable can be connected from a PC or laptop to the input port of the repeater, and on the other side an up to 10 m long cable to the output port of the repeater, which is then connected to a display or TV. Specification • Connectors: Input: 1 x DisplayPort female 1 x USB Type-C™ female (5 V power supply) Output: 1 x DisplayPort female • DisplayPort 1.4 specification • Downwards compatible to DisplayPort 1.3, 1.2 and 1.1 • Resolution up to: 7680 x 4320 @ 30 Hz 3840 x 2160 @ 144 Hz (depending on the system and the connected hardware) • Supports HBR3 (8.1 Gbps) data rate • Transmission of audio and video signals • Data transfer rate up to 32.4 Gbps • Robust metal housing • Colour: grey • Dimensions (LxWxH): ca. 58 x 25 x 11 mm System requirements • A free DisplayPort port on your system and display • DisplayPort connection cables • Power source with a free USB Type-A female port Package content • DisplayPort repeater • USB power cable, length: ca. 1 m • User manual

Versie: 1.4 Aansluiting 1: DisplayPort female Aansluiting 2: DisplayPort female Max. resolutie: 8K@30Hz / 4K@144Hz
