Delock DisplayPort 1.4 Switch 2 x in zu 1 DisplayPor

Onlinekabelshop.nl

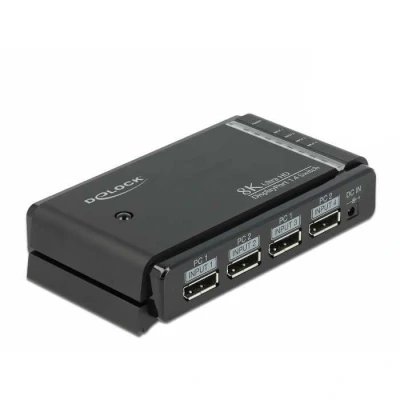

Description This DisplayPort switch by Delock can be used to connect to a high-resolution 8K monitor with two DisplayPort inputs. The two inputs can be switched between two connected PCs. Alternatively, two 4K monitors can be shared between two connected computers.The button on the device or the remote control can be used to switch between the DisplayPort devices. The output is dual-mode capable (DP++), so that an HDMI or DVI monitor can be connected with a suitable adapter.NoteThe distance between the source and the DisplayPort switch should not be greater than 2 m at resolutions of 8K @ 30 Hz.The distance between the DisplayPort switch and the monitor should not be greater than 10 m at a resolution of 8K @ 30 Hz. Specification• Connectors: Input: 2 x 2 DisplayPort 20 pin female 1 x DC 5 V power connector Output: 1 x 2 DisplayPort 20 pin female• Switching via button or infrared remote control• LED indicator for active port• DisplayPort 1.4 specification• Downwards compatible to DisplayPort 1.3, 1.2 and1.1• DisplayPort output supports Dual Mode DP++• Transmission of audio and video signals• Resolution up to: DisplayPort output: 7680 x 4320 @ 30 Hz 3840 x 2160 @ 120 Hz 2560 x 1440 @ 144 Hz (depending on the system and the connected hardware)• Metal housing• Colour: black• Dimensions (LxWxH): ca. 130 x 74 x 30 mmPower supply specification• Wall power supply• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A• Output: 5.0 V / 1.0 A• Ground outside, plus inside• Dimensions: inside: ø ca. 1.35 mm outside: ø ca. 3.5 mm length: ca. 7.0 mm System requirements •A free DisplayPort port on your system and display• DisplayPort connection cables Package content • DisplayPort switch• Remote control• External power supply• User manual

Alternate

Deze DisplayPort-switch van Delock kan worden gebruikt voor aansluiting op een hoge-resolutie 8K-monitor met twee DisplayPort-ingangen. De twee ingangen kunnen worden geschakeld tussen twee aangesloten pc's. Als alternatief kunnen twee 4K-monitoren worden gedeeld tussen twee aangesloten computers. De knop op het apparaat of de afstandsbediening kan worden gebruikt om te schakelen tussen de DisplayPort-apparaten. De uitgang is geschikt voor dual-mode (DP++), zodat een HDMI- of DVI-monitor kan worden aangesloten met een geschikte adapter.
