Delock DisplayPort 2 1 Schakelaar Bidirectioneel 8K 30 Hz

Onlinekabelshop.nl

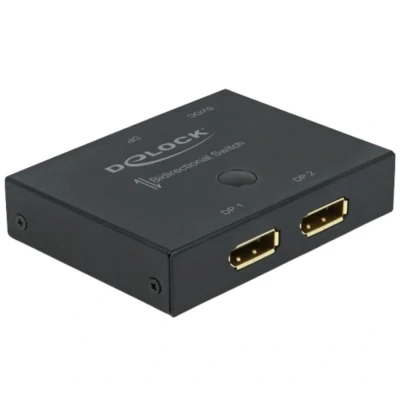

Description This DisplayPort switch by Delock is a manual bidirectional switch for connecting different devices with DisplayPort port. This switch offers two different applications.1.Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.2.A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible.NotePlease use short length and high-quality cables, especially for higher resolutions. Specification• Connectors: Function 1 Input: 2 x DisplayPort 20 pin female 1 x 5 V DC jack 1.35 x 3.5 mm Output: 1 x DisplayPort 20 pin female Function 2 Input: 1 x DisplayPort 20 pin female 1 x 5 V DC jack 1.35 x 3.5 mm Output: 2 x DisplayPort 20 pin female• DisplayPort port selection by button• Resolution up to: 7680 x 4320 @ 30 Hz 3840 x 2160 @ 144 Hz (depending on the system and the connected hardware)• Robust metal housing• Colour: black• Dimensions (LxWxH): ca. 83 x 63 x 18 mm System requirements • A free DisplayPort female port• DisplayPort cable• Power source with a free USB Type-A port Package content • Switch bidirectional• USB power cable, length: ca. 1 m• User manual

Allekabels

Versie: 1.4 Aansluiting 1: 2x DisplayPort female Aansluiting 2: 5 V DC bus Aansluiting 3: DisplayPort female Max. resolutie: 8K@30Hz Verguld: Nee
