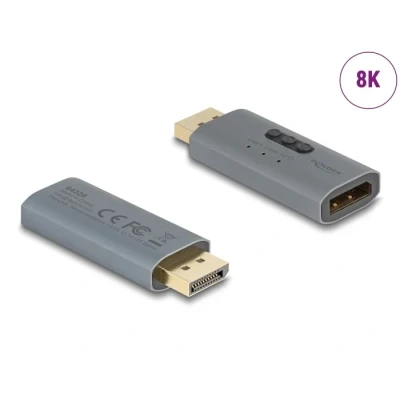

Delock DisplayPort EDID Emulator 8K HQ products

Description This EDID Emulator by Delock emulates a monitor so that the signal source does not switch off the signal or change the resolution, even without a connected monitor. The adapter contains a standard set of EDID/DDC data, but it can also read and save the data of a connected monitor. Extra features The number of DP lanes for data transmission (1, 2 or 4) can be selected depending on the desired resolution. The HPD (Hot Plug Detect) button can be used to switch the connection to the connected monitor on and off in the same way as hot plugging. Specification • Connectors: Input: 1 x DisplayPort male Output: 1 x DisplayPort female • Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected hardware) • Supports HDR • Supports HDCP • No external power supply needed • LED indicator • Push-button • Metal housing • Colour: anthracite • Dimensions incl. connector (LxWxH): ca. 62.8 x 23.3 x 10.8 mm Package content • EDID emulator • User manual
