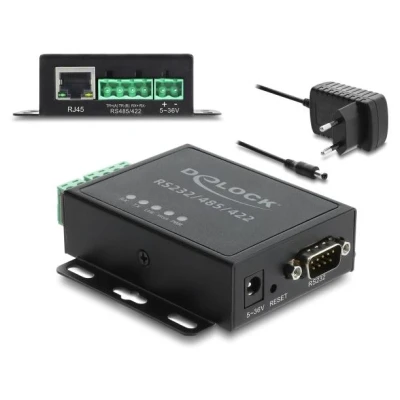

Delock Ehernet LAN Converter to RS-232/RS-485/RS-422 and Modbus RTU/TCP Gateway isolation 1.5 KV

Description The serial device server by Delock connects RS-232/RS-485/RS-422 and Modbus devices to the Ethernet TCP/IP network. This allows you to monitor and control various serial devices such as printers, machines, energy meters and sensors from a central location. The setup can be conveniently carried out in your web browser or using the accompanying software. The robust housing makes the converter suitable for wall mounting. Power supply The Ethernet LAN converter can be powered either via the power supply unit or via the terminal block with a voltage range of 5 V to 36 V. Specification • Connectors: 1 x RJ45 jack 1 x RS-422/485 Terminal Block 5 pin 1 x RS-232 D-Sub 9 pin male with nuts 1 x 2 pin terminal power connector 1 x DC 5.5 x 2.1 mm female • Chipset: Arm Cortex-M • Data transfer rate: serial up to 230.4 Kbps Fast Ethernet up to 100 Mbps (Half/Full Duplex) • RS-232 serial: Signals: RX / TX Stop bits: 1, 2 Databits: 5, 6, 7, 8 Parity: even, odd, none, mark, space • Supports: Virtual COM Port (USR), TCP Server/Client, UDP Server/Client, HTTP, HTTPD, static IP, DHCP, ICMP, ARP, RFC2217, Modbus Server/Client/Multi Master • Supports Auto MDI-X (automatic detection of standard or crossover network cable) • Supports Hardware and Software Watchdog • 5 x LED indicator • Galvanic isolation: 1.5 kV • Reset button • Housing: metal • Weight: ca. 207 g • Colour: black • Operating temperature: -25 °C ~ 75 °C • Dimensions (LxWxH): ca. 83 x 62 x 25 mm Power supply specification • Power supply type: Euro wall power plug • Model identifier: BD-0501000 • Input voltage: 100 - 240 V • Input AC frequency: 50 / 60 Hz • Input current: 0.5 A • Output voltage / Output current / Output power: 5.0 V / 1.0 A / 5.0 W • Average active efficiency: 76.1 % • No-load power consumption: 0.07 W • Power supply cable length: ca. 1.4 m • DC power connector: 5.5 x 2.1 mm • Ground outside, plus inside Specification of power connector • 1 x 2 pin terminal block (5 V ~ 36 V) • 1 x DC 5.5 x 2.1 mm female (5 V ~ 36 V) System requirements • Windows 10/10-64/11 Package content • Ethernet LAN converter • Cable RS-232 D-Sub 9 male to female 1.5 m • Cable RS-232 D-Sub 9 female to female nullmodem 1.5 m • Power supply
