Delock FAKRA Z connector veerpin om te solderen 2 voorgeponste gaten
Uitgelicht
|
12,60 |
Naar shop
|
| VERGELIJK ALLE AANBIEDERS (3) | ||
Beschrijving
Onlinekabelshop

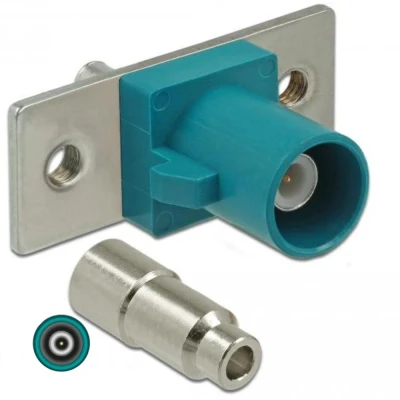

Description This plug by Delock is suitable for connecting components of radio frequency technology.
Specification • Connector: 1 x FAKRA Z plug
• FAKRA Z: RAL 5021 Water blue
• Pin: brass gold plated
• Mounting plate: steel
• Insulator: PTFE
• Housing: brass
• Plastic shell: PA66 GF30
• 2 prepunched holes for mounting
• Thread type: M2.6
• Useable cable: RG-174, RG-316
• Dimensions (LxWxH): ca. 24,0.0 x 21.2 x 7.5 mm
System requirements • Coaxial cable suitable for soldering
Package content
• FAKRA plug
Beschrijving
(2)
Description This plug by Delock is suitable for connecting components of radio frequency technology. Specification • Connector: 1 x FAKRA Z plug • FAKRA Z: RAL 5021 Water blue • Pin: brass gold plated • Mounting plate: steel • Insulator: PTFE • Housing: brass • Plastic shell: PA66 GF30 • 2 prepunched holes for mounting • Thread type: M2.6 • Useable cable: RG-174, RG-316 • Dimensions (LxWxH): ca. 24,0.0 x 21.2 x 7.5 mm System requirements • Coaxial cable suitable for soldering Package content • FAKRA plug
AllekabelsAansluiting: Fakra Z male Kabeltype: RG-174, RG-316 Lengte: 24 mm Extra: Met 2 montagegaten
