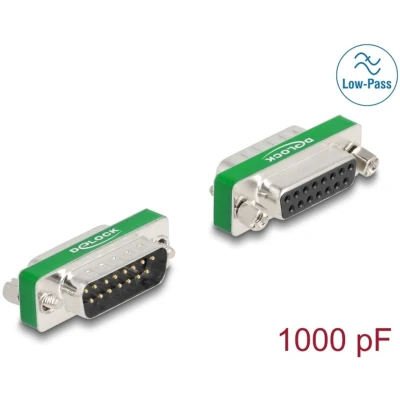

Delock HF/EMI Entstörfilter D Sub 15 Pin Stecker zu Buchse mit Tiefpa

Description The RF/EMI interference suppression filter in the D-Sub adapter by Delock uses integrated broadband filters to prevent interruptions and signal noise, e.g. on Serial RS-232 / RS-485 and digital as well as analogue I/O interfaces. Low-pass broadband filter The adapter contains 15 low-pass broadband filters for RF/EMI shielding of the D-Sub interface. Note Available in D-Sub 9, 15, 25 and 37 pin versions. Specification • Connectors: 1 x D-Sub 15 pin male 1 x D-Sub 15 pin female • Pin assignment: 1:1 • Contacts: gold plated brass • Screw type: #4-40 UNC • Housing material: Steel tin plated • Low-pass: inductive • Rated voltage: 150 VAC • Operating temperature: -55 °C ~ 105 °C • Relative humidity: 0 - 95 % (non condensing) • Dimensions (LxWxH): ca. 39.5 x 17.9 x 12.7 mm System requirements • A free D-Sub 15 pin interface Package content • RF/EMI filter
