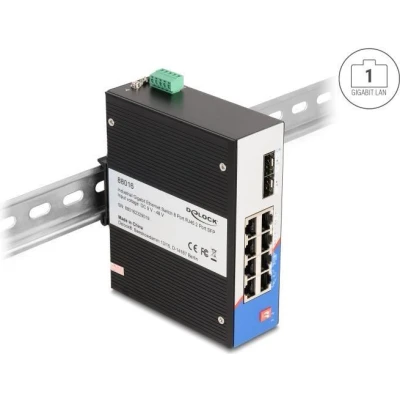

Delock Industrie Gigabit Ethernet Switch 8 Port RJ45 2 SFP für H

Description This robust, industry capable Gigabit Ethernet switch by Delock can be used to connect different network components. Two SFP uplink ports with 1 Gbps offer flexible connection options. Redundant power supply with 9 V to 48 V The switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability. Specification • Connectors: 8 x RJ45 jack for 10/100/1000 Mbps Base-T 2 x SFP slot for 1 Gbps SFP module 1 x 5 pin terminal power connector • Data transfer rate up to 1 Gbps • Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab • VLAN port Isolation • LEDs for status monitoring • Redundant power supply with 9 V to 48 V • Power consumption: max. 6 W • Robust metal housing • Fanless • Suitable for 35 mm DIN rail • Protection class: IP40 • Operating temperature: -40 °C ~ 85 °C • Dimensions (LxWxH): ca. 142 x 116 x 48 mm System requirements • Power supply with DC 9 V - 48 V (not included) Package content • Switch • User manual

Aansluiting 1: 8x RJ45 female Aansluiting 2: 2x SFP female Montage type: DIN rail 35 mm
