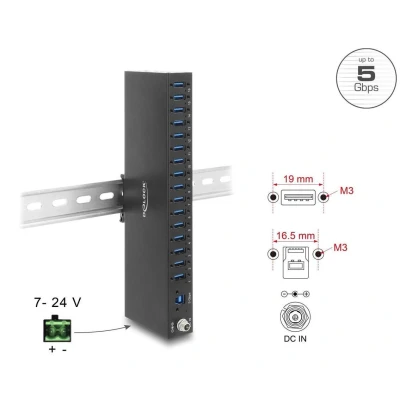

Description This solid industry capable USB Hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by 16 USB Type-A connectors. Screw connection and mounting option Each USB port has two screw holes with M3 thread. Appropriate cables can be plugged in and screwed into the screw holes. This ensures a secure data connection even in mobile environments. In addition, the hub comes with wall mounting plates and a DIN rail bracket, making it perfect for installation in an industrial environment. ESD fuse The USB ports are protected against electrostatic discharges up to 8 kV. Power Supply If necessary, an optional power supply or an optional power cable can be connected to the power socket. A voltage between 7 - 24 V can be applied to the terminal power connection, and to the DC connection. Specification • Connectors: 1 x USB 5 Gbps Type-B female 16 x USB 5 Gbps Type-A female 1 x 7 - 24 V DC jack 1 x 7 - 24 V 2 pin terminal power connector • Chipset: VIA VL817 • Data transfer rate up to 5 Gbps • Bootable • Plug & Play • 17 x LED indicator • Robust metal housing • USB ports with screw holes • Pitch of screw hole USB Type-A: ca. 19 mm • Pitch of screw hole USB Type-B: ca. 16.5 mm • Thread size: M3 • Removable wall-mount brackets • Power supply: Bus-powered or Self-powered • Flexible power supply with 7 V to 24 V • ESD protection up to 8 kV for all ports • Operating temperature: -40 °C ~ 85 °C • Storage temperature: -40 °C ~ 125 °C • Colour: black • Dimensions (LxWxH): ca. 177 x 67 x 28 mm Specification of power connector DC: • 7 - 24 V • Dimensions: inside: ø ca. 2.5 mm outside: ø ca. 5.5 mm length: ca. 10 mm terminal: • 7 - 24 V System requirements • Linux Kernel 6.2 or above • Mac OS 13.1 or above • Windows 10/10-64/11 • Windows Server 2022 • PC or laptop with a free USB Type-A port Package content • Hub USB • 1 x cable USB A male to USB B male, length ca. 1 m • 2 x wall mounting brackets • 1 x mounting for 35 mm DIN rail • 1 x 2 pin terminal block • Screws • Dowel • User manual
KauflandDeze robuuste, industriële USB-hub van Delock wordt via de USB Type-A poort aangesloten op een computer. Hij breidt de computer uit met 16 USB Type-A poorten. Schroefverbinding en bevestigingsmogelijkheid Elke USB-poort heeft twee schroefgaten met een M3-draad. Hier kunnen passende kabels worden aangesloten en vastgeschroefd. Hierdoor wordt een veilige datoverdracht gegarandeerd, zelfs in bewegende omgevingen. Daarnaast wordt de hub geleverd met wandmontageplaten en een bevestiging voor een 35 mm DIN-rail, waardoor hij perfect geschikt is voor installatie in een industriële omgeving. ESD-beveiliging De USB-poorten zijn beveiligd tegen elektrostatische ontlading tot 8 kV. Voeding Indien nodig, kan een optioneel netsnoer of een optionele voeding worden aangesloten op de stroomaansluiting. Aan de terminal-stroomaansluiting en de DC-aansluiting kan een spanning tussen 7 en 24 V worden aangelegd. Technische specificaties - Aansluitingen: 1 x USB 5 Gbps Type-B poort; 16 x USB 5 Gbps Type-A poort; 1 x 7 - 24 V DC stroomaansluiting; 1
