Delock Interfaceadapter M.2 Key M Naar E

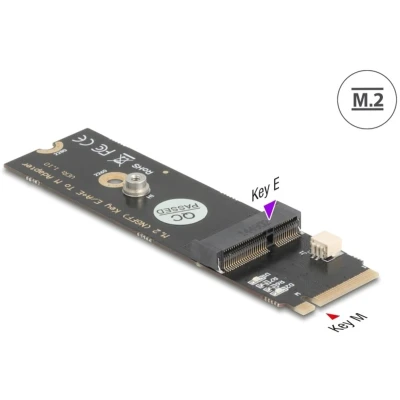

Description This converter by Delock converts the M.2 key M slot into a key E slot. It supports modules with USB and PCIe signal transfer. Specification • Connectors: 1 x M.2 key M male 1 x M.2 key E slot 1 x 2 pin USB 2.0 pin header male• Interface: PCIe Rev. 4.0 / USB• Form factor: M.2 2280• Supports modules in format 2230, 1630 and 3030 with key E or key A+E based on PCIe and USB• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported• Dimensions (LxWxH): ca. 80 x 22 x 5 mm System requirements • A free M.2 key M slot based on PCIe• Motherboard with a free 9 pin USB 2.0 pin header male for USB signals Package content • Converter• USB cable, length ca. 35 cm• Mounting material• User manual

Aansluiting 1: 1 x M.2 Key M-connector Aansluiting 2: 1 x M.2 Key E-slot Aansluiting 3: 1 x 2-pins USB 2.0-headerconnector
