Delock Isolator RS 232 D Sub 9 Buchse zu Stecker RXD, T

Onlinekabelshop.nl

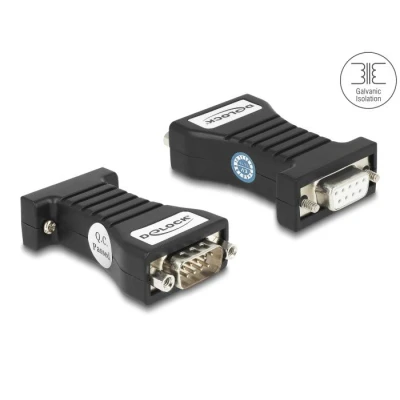

Description This RS-232 isolator by Delock protects all connected devices such as computers, machines, controllers, measuring devices, etc. against electromagnetic and electrostatic discharges as well as surge. Due to the complete galvanic isolation of the connected devices, a continuous data transmission is guaranteed even in the case of earth or ground loops. The isolator can be used as a coupling directly between two DB9 connections without an additional power supply. Specification• Connectors: 1 x serial RS-232 DB9 female with screws 1 x serial RS-232 DB9 male with nuts• Data transfer: asynchronous, full duplex• Data transfer rate from 300 bps to 19200 bps• Isolation Voltage: 2500 VRMS peak pulse or 500 VDC• ±3 kV ESD protection on all signal pins• Data lines: RXD, TXD, DTR, RTS, GND• Housing material: plastic• Colour: black• Operating temperature: -40 °C ~ 80 °C• Relative humidity: 5 - 95 % (non condensing)• Dimensions (LxWxH): ca. 63 x 33 x 17 mm• Bus Power from RS-232: TXD, RTS or DTR• Plug&Play• No external power supply needed System requirements • 1 x serial RS-232 DB9 female with screws• 1 x serial RS-232 DB9 male with nuts Package content • Isolator RS-232 to RS-232• Terminal block

Allekabels

Deze RS-232 Isolator van Delock beschermt alle aangesloten apparaten zoals computers, machines, besturingen, meetinstrumenten etc. tegen elektromagnetische en elektrostatische ontladingen en overspanningen. Door de volledige galvanische isolatie van de aangesloten apparaten wordt een continue dataoverdracht gegarandeerd, zelfs bij aard- of massaslissen. De isolator kan als koppeling direct tussen twee DB9-aansluitingen worden gebruikt zonder extra voeding. • 1 x Seriële RS-232 DB9 vrouwelijke connector met schroeven • 1 x Seriële RS-232 DB9 mannelijke connector met moeren • RS-232 naar RS-232 Isolator • Klemmenblok Kabels / Adapters Industrie Galvanische scheiding
