Delock Keystone Module RJ45 jack to LSA Cat.6A shielded tool-free with dust protection flap

Name: Delock Keystone Module RJ45 jack to LSA Cat.6A shielded tool-free with dust protection flap
Brand: Delock
SKU: 8578cc483203a5ba7633e0b58cdf2e7a
Price: 9.99 EUR
Availability: InStock

1/1

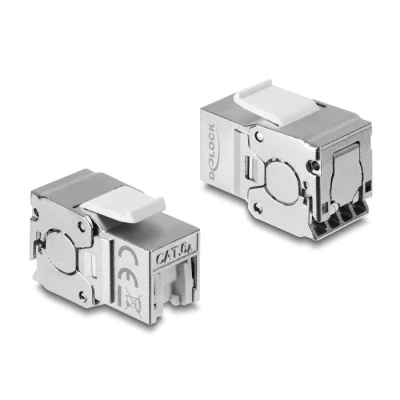

Afbeelding van Delock Keystone Module RJ45 jack to LSA Cat.6A shielded tool-free with dust protection flap

Onlinekabelshop

Prijzen vanaf

9,99

Uitgelicht

	9,99	Naar shop
VERGELIJK ALLE AANBIEDERS (1)

Beschrijving

Onlinekabelshop Description This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box. Horizontally angled cable entry The module has an angled cable guide that can be adjusted at a 90° angle depending on the installation situation. This is particularly practical when there is little space available, for example in narrow junction boxes or distribution panels. This allows cables to be laid neatly and without sharp bends. Specification • Connectors: 1 x RJ45 jack (8P/8C) 1 x LSA (toolfree) • Cat.6A specification • Shielded (STP) • With dust flap • Material: zinc diecast • TIA-568A/B pinout • For solid or stranded wire up to 0.573 mm (23 - 26 AWG) • For cable diameter from 5.0 - 8.5 mm • For Keystone ports with 19.2 x 14.9 mm • Operating temperature: -10 °C ~ 60 °C • Dimensions (LxWxH): ca. 31.9 x 16.8 x 23.0 mm Package content • Keystone module • Cable manager • Zip-tie

Lees meer

Vergelijk aanbieders (1)

Sorteren op:

€ 9,99 € 4,99 verzendkosten Totaal € 14,98

Beschrijving (1)

Description This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box. Horizontally angled cable entry The module has an angled cable guide that can be adjusted at a 90° angle depending on the installation situation. This is particularly practical when there is little space available, for example in narrow junction boxes or distribution panels. This allows cables to be laid neatly and without sharp bends. Specification • Connectors: 1 x RJ45 jack (8P/8C) 1 x LSA (toolfree) • Cat.6A specification • Shielded (STP) • With dust flap • Material: zinc diecast • TIA-568A/B pinout • For solid or stranded wire up to 0.573 mm (23 - 26 AWG) • For cable diameter from 5.0 - 8.5 mm • For Keystone ports with 19.2 x 14.9 mm • Operating temperature: -10 °C ~ 60 °C • Dimensions (LxWxH): ca. 31.9 x 16.8 x 23.0 mm Package content • Keystone module • Cable manager • Zip-tie
