Delock klemmenblokset voor top hat rails 8 pins met schroefslot Delo

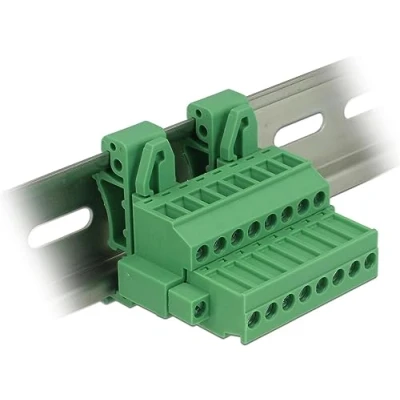

Description This terminal block set by Delock is suitable for the mounting on a DIN rail. Thus data or power cables can be connected via the terminal block. DIN Rail Mounting This terminal block set can be fixed on a DIN rail with a width of 35 mm. Terminal Block Set for DIN rail (Video) ()   Specification • Connectors: Terminal block: 1 x 8 pin terminal block male 1 x 8 pin terminal block Connection terminal: 1 x 8 pin terminal block female 1 x 8 pin terminal block • Pitch: 5.08 mm • Environmental temperature: -40 °C ~ 105 °C • Useable for a cable gauge range from 24 to 12 AWG • DIN rail mounting: 35 mm • Material: plastic • Colour: green • Dimensions (LxWxH): ca. 42.50 x 34.90 x 51.80 mm Package content • Terminal block • DIN rail clip • Connection terminal

Delock Terminalblok set voor DIN-rails 8-pins met schroefvergrendeling
