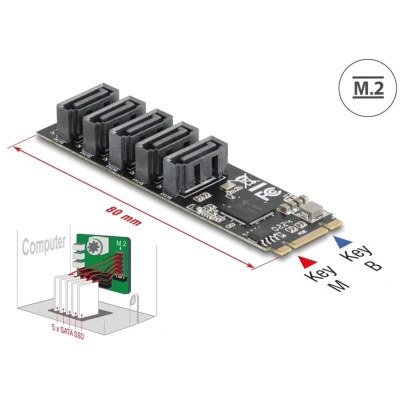

Delock M.2 2280 Key B+M Controller to 5 x SATA

Description This M.2 to SATA controller by Delock expands the system by five SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the controller. Specification • Connectors: 1 x M.2 key B+M male 5 x SATA 6 Gb/s 7 pin plug • Chipset: JMicron JMB585 • Interface: PCIe • Form factor: M.2 2280 • Suitable for M.2 slot with key M or B based on PCIe • 5 x LED indicator for power and access • Data transfer rate up to 6 Gb/s • Supports Native Command Queuing (NCQ) • Supports S.M.A.R.T. • Supports TRIM • Supports DevSleep • Hot Swap • Bootable • Dimensions (LxWxH): ca. 80 x 22 x 10 mm System requirements • Linux Kernel 6.5 or above • Windows 10/10-64/11 • A free M.2 key M or key B slot Package content • M.2 to SATA controller • Screw • User manual
