Delock M12 Adapter X kodiert 8 Pin Buchse zu RJ45 Cat.6A STP Me

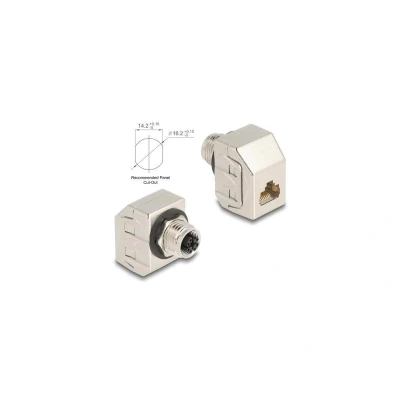

Description This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation. Installation in switch cabinet Due to its compact dimensions, the adapter is very well suited for installation in a switch cabinet. Devices with M12 connectors can be integrated into an existing network structure. Specification • Connectors: 1 x M12 female 8 pin X-coded 1 x RJ45 jack • Cat.6A specification • Built-in hole Ø: 16.2 mm • Housing material: zinc diecast • Shielded (STP) • M16 external thread • Silicone sealing ring black • Contacts gold-plated • Operating voltage: max. 48 V • Current: M12: max. 0.5 A RJ45: max. 1.5 A • Operating temperature: -10 °C ~ 60 °C • Protection class: IP67 (M12) • Colour: silver • Dimensions (LxWxH): ca. 39.6 x 34.0 x 26.0 mm Package content • Adapter

Aansluiting 1: M12 female 8-pin X-codering Aansluiting 2: RJ45 female Type: Cat 6a
