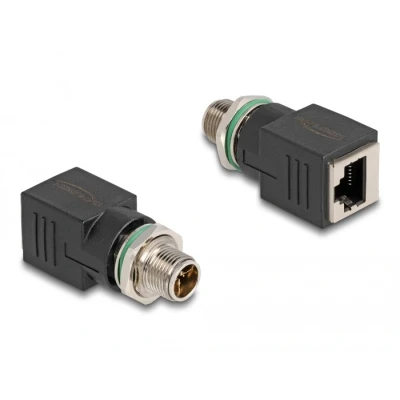

Delock M12 Adapter X kodiert 8 Pin Stecker zu RJ45 Buchse gerade HQ
Beschrijving
Onlinekabelshop.nl
Description This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.Einbau in SchaltschrankDue to its compact dimensions, the adapter is very well suited for installation in a switch cabinet. Devices with M12 connectors can be integrated into an existing network structure. Specification• Connectors: 1 x M12 male 8 pin X-coded 1 x RJ45 jack• Cat.6A specification• Housing material: PUR (TPU)• M16 external thread• Contacts gold-plated• Operating voltage: max. 48 V• Current: max. 500 mA• Operating temperature: -25 °C ~ 85 °C• Protection class: IP67 (M12)• Colour: black• Dimensions (LxWxH): ca. 47.0 x 19.6 x 25.0 mm System requirements • A free M12 female port• A free RJ45 plug Package content • Adapter
