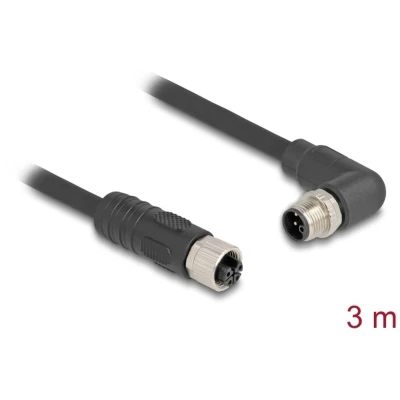

Delock M12 Cable L coded 4 pin male right angled to female straight PUR suitable for drag chains 3 m black

Onlinekabelshop

Description This M12 sensor cable by Delock can be used for direct current applications. The L-coded version has 4 power contacts with a rated current of 12 A at 63 V with which currents can be reliably transmitted. This can be used to supply power to fieldbus components, power supply units, industrial machines and motors, for e.g., where a high current and low voltage are required. Specification • Connectors: 1 x M12 male 4 pin L-coded right angled 1 x M12 female 4 pin L-coded straight • Copper conductor • Unshielded • Cable gauge: 16 AWG (1.5 mm²) • Rated current: 12 A / 63 V • Spanner width: SW13 • Cable diameter: ca. 7.2 mm • Cable jacket material: PUR • Suitable for drag chains • Drag chain speed: up to max. 5 m/s • Tightening torque: 0.6 Nm • Bending radius (fixed): 5 x outer diameter • Bending radius (movable): 10 x outer diameter • Max. number of bending cycles: 5,000,000 • Max. number of torsion cycles: 500,000 • Torsional stress: ± 180 °/m • Operating temperature (fixed): -40 °C ~ 80 °C • Operating temperature (movable): -25 °C ~ 70 °C • Flammability class: UL94HB • Halogen-free, silicone-free, oil-resistant • Protection class: IP66 / IP67 • Material thread: zinc diecast • Colour: black • Length incl. connectors: ca. 3 m Package content • M12 cable

Kaufland

DELOCK M12-kabel, L-gecodeerd, 4-polig, rechte connector, PUR-mantel, 3 meter lengte, ideaal voor industriële sensortechniek, automatisering en machinebouw. Robuuste M12-aansluiting met L-gecodeerde interface en flexibele, slijtvaste PUR-kabelomhulsel

Allekabels

Aansluiting 1: M12 male 4-pin L-codering haaks Aansluiting 2: M12 female 4-pin L-codering Kabeldiameter: 7.2 mm Lengte: 3 meter Extra: Geschikt voor kabelrupsen
