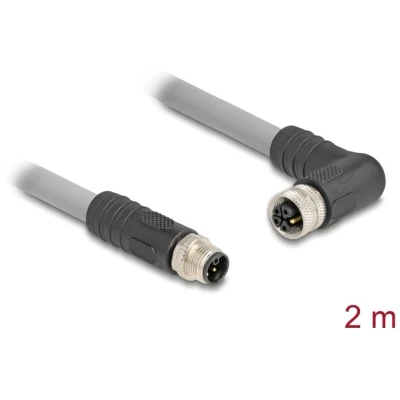

Delock M12 Cable L coded 5 pin male straight to female right angled PUR suitable for drag chains 2 m grey

Onlinekabelshop

Description This M12 sensor cable by Delock can be used for direct current applications. The L-coded version has 5 power contacts with a rated current of 16 A at 63 V with which currents can be reliably transmitted. This can be used to supply power to fieldbus components, power supply units, industrial machines and motors, for e.g., where a high current and low voltage are required. Specification • Connectors: 1 x M12 male 5 pin L-coded straight 1 x M12 female 5 pin L-coded right angled • Copper conductor • Shielded • Cable gauge: 14 AWG (2.5 mm²) • Rated current: 16 A / 63 V • Spanner width: SW13 • Cable diameter: ca. 10.4 mm • Cable jacket material: PUR • Suitable for drag chains • Drag chain speed: up to max. 5 m/s • Tightening torque: 0.6 Nm • Bending radius (fixed): 5 x outer diameter • Bending radius (movable): 10 x outer diameter • Max. number of bending cycles: 5,000,000 • Max. number of torsion cycles: 500,000 • Torsional stress: ± 180 °/m • Operating temperature (fixed): -40 °C ~ 80 °C • Operating temperature (movable): -25 °C ~ 75 °C • Flammability class: UL94HB • Halogen-free, silicone-free, oil-resistant • Protection class: IP66 / IP67 • Material thread: zinc diecast • Colour: grey • Length incl. connectors: ca. 2 m Package content • M12 cable

Allekabels

Aansluiting 1: M12 male 5-pin L-codering Aansluiting 2: M12 female 5-pin L-codering haaks Kabeldiameter: 10.4 mm Lengte: 2 meter Extra: Geschikt voor kabelrupsen

Kaufland

Delock - Sensor kabel - M12 (5-polig) (mannelijk) recht, naar M12 (5-polig) (vrouwelijk) haaks - 16 A - 2,0m - siliconenvrij, L-gecodeerd - Grijs (80543)
