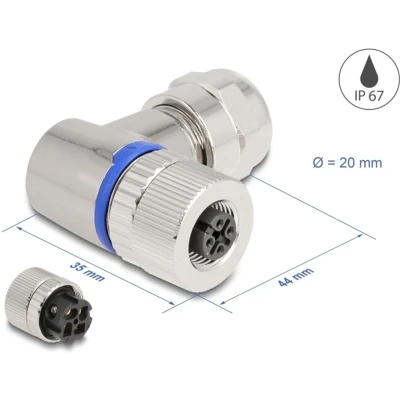

Delock M12 Connector A coded 4 pin female for mounting with screw connection 90 angled metal

Description This connector by Delock can be used to connect a cable via a screw terminal connection with an M12 connector, e.g. for machine control or automation. Specification • Connectors: 1 x M12 female A-coded 4 pin 4 x screw terminal • Housing material: metal • Useable for a cable gauge range from 26 to 20 AWG (0.13 - 0.52 mm²) • Operating voltage: max. 250 V • Current: max. 4 A • Operating temperature: -25 °C ~ 85 °C • Protection class: IP67 • Cable entry max. 3.0 - 8 mm • Thread size: M12 x 1.0 mm • Colour: black • Dimensions (LxD): ca. 44.0 x 35.0 x 20.2 mm System requirements • A free M12 female port Package content • Connector

Aansluiting 1: M12 female 4-pin A-codering Aansluiting 2: 4x Schroefklem Kabelinvoer: Tot 3.0 - 8 mm Stroom: 4 A Spanning: 250 volt
