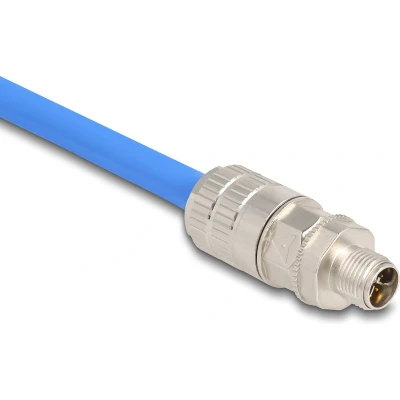

Delock M12 male 8 pin X-coded field assembly Cat.6A

Bol Partner

Description This industrial connector by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation. Specification • Connectors: 1 x M12 male X-coded 8 pin 1 x LSA block• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1 and IEC 61076-2-109, and ANSI/TIA 568-D.2• Supports IEEE 802.3an: 10GBASE-T• Supports PoE++• Material: zinc diecast• For solid or stranded wire up to 0.644 mm (22 - 26 AWG)• For cable diameter from 5.5 - 9.0 mm• Operating temperature: -40 °C ~ 85 °C• Protection class: IP67• Dimensions (LxD): ca. 50 x 20 mm System requirements • 16 mm spanner for assembly Package content • Connector

Onlinekabelshop

Description This industrial connector by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation. Specification • Connectors: 1 x M12 male X-coded 8 pin 1 x LSA block • Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1 and IEC 61076-2-109, and ANSI/TIA 568-D.2 • Supports IEEE 802.3an: 10GBASE-T • Supports PoE++ • Material: zinc diecast • For solid or stranded wire up to 0.644 mm (22 - 26 AWG) • For cable diameter from 5.5 - 9.0 mm • Operating temperature: -40 °C ~ 85 °C • Protection class: IP67 • Dimensions (LxD): ca. 50 x 20 mm System requirements • 16 mm spanner for assembly Package content • Connector

Kaufland

Delock - Netwerkconnector - 8-polige M12-X (mannelijk) - CAT 6a - IEEE 802.3an (86032)
