Delock M12 Steckverbinder A kodiert 8 Pin Buchse zur Montage mit Schra
Uitgelicht
|
19,98 |
Naar shop
|
| VERGELIJK ALLE AANBIEDERS (2) | ||
Beschrijving
Bol Partner

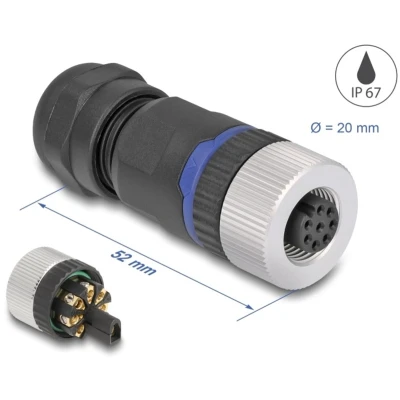

Description This connector by Delock can be used to connect a cable via a screw terminal connection with an M12 connector, e.g. for machine control or automation. Specification • Connectors: 1 x M12 female A-coded 8 pin 8 x screw terminal• Useable for a cable gauge range from 26 to 20 AWG (0.13 - 0.52 mm²)• Operating voltage: max. 30 V• Current: max. 2 A• Operating temperature: -25 °C ~ 85 °C• Protection class: IP67• Cable entry max. 3.0 - 8 mm• Thread size: M12 x 1.0 mm• Housing material: PA66• Colour: black• Dimensions (LxD): ca. 52 x 20 mm System requirements • A free M12 male port Package content • Connector
Beschrijving
(2)
Description This connector by Delock can be used to connect a cable via a screw terminal connection with an M12 connector, e.g. for machine control or automation. Specification • Connectors: 1 x M12 female A-coded 8 pin 8 x screw terminal• Useable for a cable gauge range from 26 to 20 AWG (0.13 - 0.52 mm²)• Operating voltage: max. 30 V• Current: max. 2 A• Operating temperature: -25 °C ~ 85 °C• Protection class: IP67• Cable entry max. 3.0 - 8 mm• Thread size: M12 x 1.0 mm• Housing material: PA66• Colour: black• Dimensions (LxD): ca. 52 x 20 mm System requirements • A free M12 male port Package content • Connector
AllekabelsAansluiting 1: M12 female 8-pin A-codering Aansluiting 2: 8x Schroefklem Kabelinvoer: Tot 3.0 - 8 mm Stroom: 2 A Spanning: 30 volt
Productspecificaties
