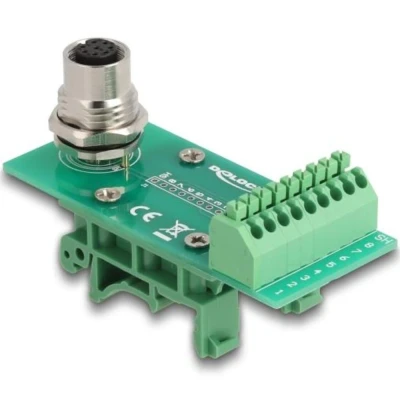

Delock M12 Transfer Module Adapter 8 pin A coded female to 9 terminal block for DIN rail

Description The M12 adapter by Delock enables a simple and secure connection between devices with M12 connectors and electrical circuits that use terminal blocks. Various areas of application The adapter offers a flexible solution for various applications in industry, automation technology, building automation and other areas where a reliable connection is required. DIN rail mounting With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail. Specification • Connectors: 1 x M12 female 8 pin A-coded 1 x 9 pin terminal block • DIN rail mounting: 15 mm and 35 mm • M16 external thread • Cable gauge: 24 - 20 AWG • Pin assignment: 1:1 • Pitch: 3.50 mm • Operating temperature: -40 °C ~ 80 °C • Dimensions (LxWxH): ca. 76.2 x 43.0 x 33.0 mm Package content • M12 adapter • 2 x DIN rail clip • 4 x screw

Aansluiting 1: M12 female 8-pin A-codering Aansluiting 2: 9-pin klemmenblok
