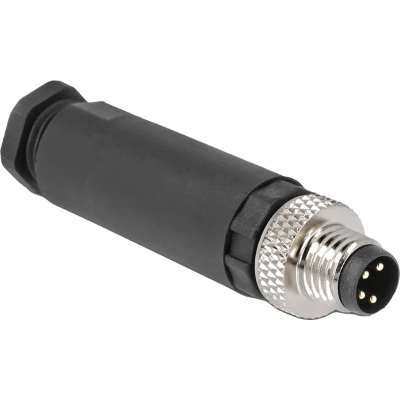

Delock M8 stekkerverbinding A gecodeerde 4 polige stekker voor montage met schroefaansluiting, Kabels + Stekkers, Zwart

Description This connector by Delock can be used to connect a cable via a screw terminal connection with an M8 connector, e.g. for machine control or automation. Specification • Connectors: 1 x M8 male A-coded 4 pin 4 x screw terminal • Useable for a cable gauge range from 26 to 22 AWG (0.13 - 0.32 mm²) • Operating voltage: max. 60 V • Current: max. 3 A • Operating temperature: -25 °C ~ 85 °C • Protection class: IP67 • Cable entry max. 3.0 - 4.5 mm • Thread size: M8 x 1.0 mm • Housing material: PA66 • Colour: black • Dimensions (LxD): ca. 45 x 12.1 mm System requirements • A free M8 female port Package content • Connector • Allen key

Aansluiting 1: M8 male 4-pin A-codering Aansluiting 2: Schroefklem Stroom: 3 A Spanning: 60 volt
