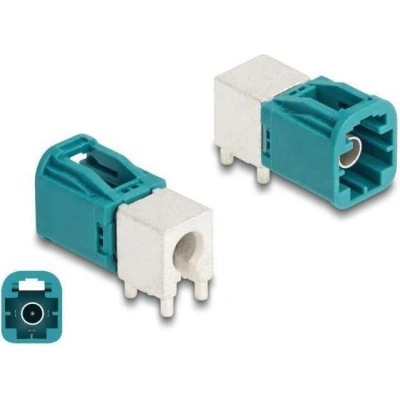

Delock Mini FAKRA Stecker single gewinkelt A Typ PCB HQ products

Description This adapter by Delock is suitable for connecting components of electronic technology and electronic in vehicles. Space saving up to 80 % Thanks to the small size of the housings at higher data rates, a space saving of 80 % can be achieved compared to the standard FAKRA connector. This allows several modules to be accommodated in a small space. Note A-Type: Compatible with Rosenberger Specification • Connector: 1 x Mini FAKRA plug 90° PCB • Mini FAKRA Z: RAL 5021 water blue • Pin: brass • Insulator: LCP • Plastic shell: PA46 • Soldering process: THT • Data transfer rate up to 28 Gbps • Frequency range: up to 20 GHz • Impedance: 50 Ohm • Dimensions (LxWxH): ca. 21 x 8 x 10 mm System requirements • Suitable board for mounting the Mini FAKRA connector Package content • Mini FAKRA plug

Aansluiting: Mini Fakra female haaks Lengte: 21 mm Soort: A-Type
