Delock Mini PCIe I/O volledige grootte 1 x RJ45 Gigabit LAN Del

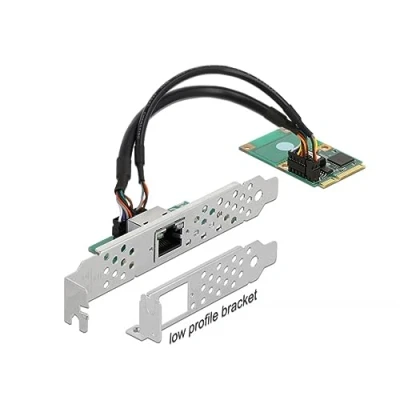

Description This Mini PCIe module by Delock expands a system by one Gigabit LAN RJ45 interface, which can be lead out via the slot bracket. With the perforation, the length can be shortened from full size to half size. Specification • Connectors: internal: 1 x Mini PCIe male external: 1 x Gigabit LAN RJ45 jack with screw-nut • Chipset: Intel i210 • Form factor: Mini PCIe full size / half size • Interface: PCI Express revision 2.1 • Data transfer rate: Ethernet up to 10 Mbps Fast Ethernet up to 100 Mbps Gigabit Ethernet up to 1000 Mbps PCI Express x1 up to 4 Gbps • Supports IEEE 802.3 / 802.3u / 802.3ab • Supports IEEE 802.3az (Energy Efficient Ethernet) • Supports 9k Jumbo Frames • Supports PXE • Cable length with connectors: ca. 30 cm System requirements • Linux Kernel 2.6 or above • Windows 7/7-64/8.1/8.1-64/10/10-64 • Motherboard with a free Mini PCIe slot with a PCIe interface • PC with one free slot Package content • Mini PCIe module • 2 connecting cable • Slot bracket • Low profile bracket • Driver CD • User manual
