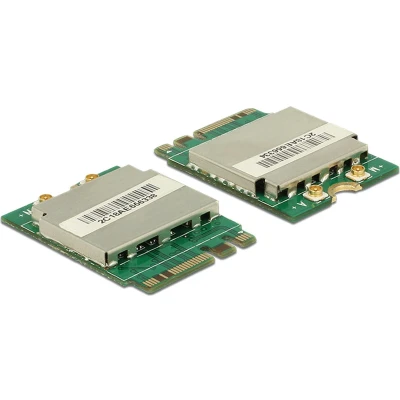

Delock Module M.2 Key A+E male>WLAN 11ac/a/b/g/n + Bluetooth 4.0

Description This M.2 module by Delock can be inserted into an M.2 slot with key A or key E. It provides one WLAN interface which exchanges signals via PCIe with the system and one Bluetooth interface which exchanges signals via USB with the system. Specification • Connectors: 1 x 59 pin M.2 key A+E male 2 x I-PEX Inc., MHF® I plug• Chipset: Realtek RTL8821AE• Interface: PCIe 1.1 + USB 1.1• Form factor: M.2 2230• Suitable for M.2 slot with key A or key E based on PCIe and USB• WLAN Frequency range: 2.4 GHz and 5 GHz Compatible with IEEE 802.11ac/a/n/b/g Data transfer rate: 11ac up to 433.3 Mb/s, 11n up to 150 Mb/s, 11a/g up to 54 Mb/s Supports IEEE 802.11e Quality of Service (QoS) for Multimedia applications (WMM) Supports IEEE 802.11i WPA and WPA2 Supports WiFi Direct, WAPI• Bluetooth Frequency range: 2400 ~ 2483.5 MHz Supports BT 4.0 dual mode with simultaneous LE and BR/EDR use Supports AFH Bluetooth downwards compatible to 3.0 and 2.1• Current consumption: 3.3 V / 500 mA• Operating temperature: 0 °C ~ 55 °C• Storage temperature: -5 °C ~ 65 °C• Operating humidity: 10 ~ 90 %• Storage humidity: 5 ~ 90 %• Dimensions (LxWxH): ca. 30.0 x 22.0 x 2.5 mm System requirements • Linux Kernel 3.17 or above• Windows 7/7-64/8.1/8.1-64/10/10-64/11• A free M.2 key A or key E slot Package content • M.2 module• User manual
