Delock Panel Mount DC 5,5 x 2,5 mm Buchse zu 2,1 Stecker s

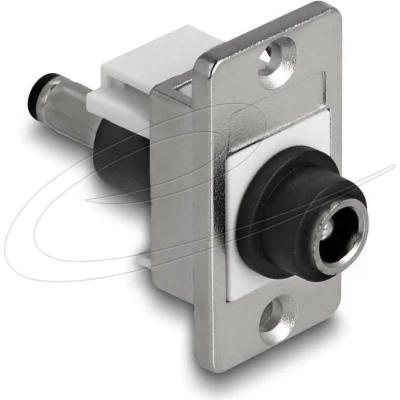

Description This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power. Please Note To ensure the correct function of the connected device, it must match the specifications for voltage, current and polarity of the power supply. Specification • Connectors: external: 1 x DC 5.5 x 2.5 mm female internal: 1 x DC 5.5 x 2.1 mm male • Gold-plated connectors • Integrated name plate • Panel cut-out (WxH): ca. 16.8 x 22.3 mm • Countersink for conical screws, distance ca. 28.9 mm • Mounting hole diameter: ca. 3.3 mm • Screw type: #4-40 UNC • Material: zinc diecast / plastic • Colour: silver / white / black • Dimensions (LxWxH): 42.3 x 19.0 x 35.5 mm Package content • Panel Mount

Aansluiting 1: DC 5,5 x 2,5 mm female Aansluiting 2: DC 5,5 x 2,1 mm male Diameter montagegat: 3,3 mm Schroeftype: #4-40 UNC
