Delock PCI Express Card > 4 x external USB 3.0 Quad Channel

Onlinekabelshop.nl

Description The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot. Specification• Connectors: external: 4 x USB 3.0 Type-A female internal: 1 x SATA power connector 1 x Molex 4 pin power connector 1 x PCI Express x4, V2.0• Chipset: 4 x Renesas D720202• Data transfer rate up to: SuperSpeed 5 Gbps, Hi-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps System requirements • Linux Kernel 2.6 or above• Windows 7/7-64/8.1/8.1-64/10/10-64• PC with one free PCI Express x4 / x8 / x16 / x32 slot• Power supply with a free power connector Package content • PCI Express card USB 3.0• Low profile bracket• Driver CD• User manual

Alternate

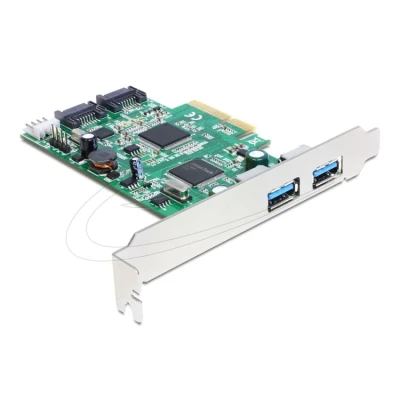

Met deze PCI Express-kaart van Delock breidt je een pc uit met twee externe USB 3.0-poorten en twee interne SATA-poorten. Verschillende apparaten zoals SSD's, harde schijven, dvd-stations enz. kunnen op de PCI Express-kaart worden aangesloten.
