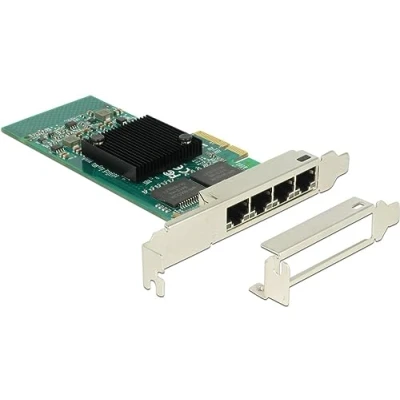

Delock PCI Express kaart > 4 x Gigabit LAN

Description The PCI Express card by Delock offers four network ports with a data transfer rate up to 1000 Mbps. Specification • Connectors: external: 4 x Gigabit LAN RJ45 jack internal: 1 x PCI Express x4, V2.1 • Chipset: Intel i350 • Data transfer rate: Ethernet up to 10 Mbps Fast Ethernet up to 100 Mbps Gigabit Ethernet up to 1000 Mbps PCI Express x1 up to 4 Gbps • Supports IEEE 802.3 / 802.3u / 802.3ab • Supports IEEE 802.3az (Energy Efficient Ethernet) • Supports Wake On LAN (WOL) • Supports IEEE 802.1Q Virtual LAN (VLAN) • Supports 9k Jumbo Frames • Supports PXE System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64 • Windows Server-2012 R2/Server 2016 • Linux Kernel 2.6 or above • PC with one free PCI Express slot Package content • PCI Express card • Low profile bracket • Driver CD • User manual

Adap Delock Compatible PCI Express x4 Card 4X RJ45
