Delock PCI Express kaart naar 2 x seriële RS 232 met voeding 5 V De

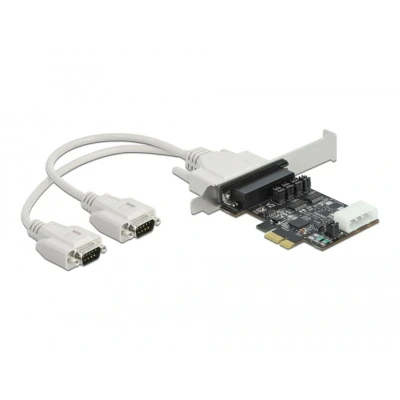

Description The PCI Express card by Delock expands a PC by two external serial ports.Optional voltage supplies via RS-232Connected devices can optionally be supplied with voltages of 5 V or 12 V. The following four outputs are available on the RS-232 ports: pin 1 (DCD), pin 4 (DTR), pin 8 (CTS) and pin 9 (RI).Low Profile Form FactorBy using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC. Specification • Connectors: internal: 1 x PCI Express x1, V2.0 1 x power connector 4 pin Molex male external: 1 x DB44 female connecting cable: DB44 male > 2 x serial RS-232 DB9 male• Chipset: MaxLinear 17V352• Compatible with 16C550 UART• Data transfer rate up to 230.4 Kbps• Databits: 5, 6, 7, 8• Stop bits: 1, 1.5, 2• Parity: even, odd, none, mark, space• FIFO: 256 byte• ±15 kV ESD protection on all signal pins• 5 V or 12 V can be set individually for each port through the jumper (Pin 1/4/8/9)• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)• Electrical power per port: max. 18 watt (12 V / 1.5 A)• I/O address and IRQ assigned by BIOS• Dimensions (LxW): ca. 80 x 55 mm System requirements • Windows 8.1/8.1-64/10/10-64/11• PC with one free PCI Express slot• Power supply with a free Molex power connector Package content • PCI Express card• Low profile bracket• 1 x serial connecting cable (ca. 30 cm)• Driver CD• User manual
